UTG® ACCU-SYNC® 2018R DOT SIGHT, RED 3.0 MOA SINGLE DOT, FOR MINI ACOG®, OP-DS2018R
UTG
$179.97
(No reviews yet)
Write a Review
UTG

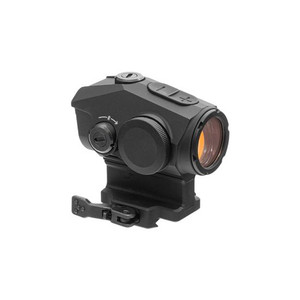

UTG® ACCU-SYNC® 2018R DOT SIGHT, RED 3.0 MOA SINGLE DOT, FOR MINI ACOG®, OP-DS2018R
UTG® ACCU-SYNC® 2018R Dot Sight, Red 3.0 MOA Single Dot, for Mini ACOG®
ACCU-SYNC® DOT SIGHTS
UTG® ACCU-SYNC® dot sights come in a compact and subcompact size and feature a red illuminated 3 MOA dot with 8 manually adjusted brightness intensity settings to choose from. Illumination memory conveniently gets users right back to the last brightness setting used upon activation. Fully sealed, ACCU-SYNC® dot sights are IPX7 waterproof rated and constructed from matte black anodized 6061-T6 aluminum. Optimized for low power consumption and powered by a single CR2032 battery, a 30,000+ hour battery life (at middle brightness) comes standard.
The mounting base uses the common mini ACOG® footprint and is configured for a lower 1/3 co-witness out of the box. Removing the included riser drops the height down to that of a low mount providing users two commonly used height profiles for different firearm applications. In addition, the base features squared recoil stops and our QR (quick release) mount, making for a quick installation and removal, reliable return to zero, and is compatible with Picatinny rails with widths that may even be out of spec. Tool-free tension adjustment is locked in place via a gear and spring-loaded locking lever interface, allowing users to set it once and forget it.
- Precision Machined from 6061-T6 Aluminum and Finished in a Matte Black Anodization
- Wide Field of View 18mm Lens Diameter
- Impact Resistant Tempered Glass Lens
- 3 MOA Red Dot with 8 Brightness Settings
- 30,000+ Hours Battery Life at Middle Brightness Setting
- Snag-free Flush Turrets with Crisp 1 MOA Per Click Adjustment at 100 Yards
- IPX7 Waterproof Rated
- Low Profile Quick Release (QR) Mini ACOG® Mount with Lower 1/3 Co-witness Riser Included
- NOTE: We recommend to tighten the M5 screw with torque value of about 25 inch-lb
QUICK TO ACQUIRE AND SHOOTER CONFIGURABLE
- Low Profile Quick Release (QR) Mount with Tool-free Tension Adjustment
- Configured for a Lower 1/3 Co-witness and Mini ACOG® Footprint Compatible
- Snag-free Flush Turrets with Crisp 1 MOA per Click Adjustment at 100 Yards
- Multi-coated Lens with Wide 18 mm Field of View
RELIABLE PERFORMANCE
- IPX7 Waterproof Rated
Operation Range from -40°F to 158°F - Recoil Rated Up to .450 Bushmaster
Squared Recoil Stops for A Secure and Repeatable Zero - Locking Quick Release Lever Prevents Inadvertent Release
DURABLE CONSTRUCTION
- Precision Machined Matte Black Anodized 6061-T6 Aluminum Construction
- Reinforced Main Body and Recessed Windage and Elevation Turrets
- Impact Resistant Tempered Glass Lens
RED 3.0 MOA SINGLE DOT RETICLE
Target Dot reticle consists of a single floating dot in the center as the aiming point with the least visual distraction. It is commonly used for quick aiming applications with lower demand for pin-point accuracy. The shooter aims by pointing the dot at the target. For a reflex dot sight based on light reflection, the sight usually does not have magnification and there is an unlimited eye relief. The dot is a reflected image of the light source with common characteristics from any light reflection, including possibly slight flare and fuzziness of the dot.
RETICLE BREAKDOWN
| DISTANCE (YARDS) | 25 | 50 | 75 | 100 | 200 | 300 |
| DOT SIZE BY LINEAR DISTANCE (INCH) | 0.79 | 1.57 | 2.36 | 3.14 | 6.28 | 9.42 |
ACCESSORIES INCLUDED
- M5x0.8-5mm Length Button Head Screw, X2
- Allen Wrench 3mm
- T25 Torx Wrench
- W/E Adjusting Wrench
- CR2032 3V High Energy Lithium Battery
- Neoprene Dot Sight Cover
- Cleaning Cloth
- User Manual
| WARRANTY | Lifetime |
|---|---|
| MATERIALS | 6061-T6 Aluminum |
| SURFACE FINISH | Anodized |
| QUICK-DETACHABLE | Yes |
| WATERPROOF RATING | IPX7 |
| OPERATING TEMPERATURE HIGH (⁰F) | +160 |
| OPERATING TEMPERATURE HIGH (⁰C) | +70 |
| OPERATING TEMPERATURE LOW (⁰F) | -40 |
| OPERATING TEMPERATURE LOW (⁰C) | -40 |
| RETICLE | Single Dot |
| RETICLE COLOR(S) | Red |
| ILLUMINATION TOGGLE TYPE | +/- Digital |
| BRIGHTNESS SETTINGS | 8 |
| BRIGHTNESS MODE(S) | Manual |
| BATTERY TYPE | CR2032 3V |
| BATTERY LIFE (HRS) | 30,000 |
| BATTERY LOADING | Right Side Turret |
| CLICK VALUE @ 100 YARDS (MOA) | 1 |
| MAGNIFICATION | 1 |
| LINEAR FOV (FT @ 100 YDS) | 3.77 |
| EYE RELIEF | Infinity |
| PARALLAX (YDS) | Infinity |
| PARALLAX (M) | Infinity |
| LENS MATERIAL | Glass |
| OBJECTIVE LENS DIAMETER (IN) | 0.71 |
| OPTIC FOOTPRINT | For Mini ACOG® |
| MOUNT TO RAIL TORQUE VALUE (IN-LB) | 25 |
| WEIGHT (OZ) | 5.4 |
| CENTER HEIGHT (IN) | 1/3 Co-witness: 1.62 / Low Mount: 0.89 |
|---|---|
| HEIGHT (IN) | 2.66 |
| LENGTH (IN) | 2.24 |
| TOTAL MOUNTING SPACE (IN) | 1.78 |
| WIDTH (IN) | 1.50 |
| WINDOW SIZE (IN) | 0.71 |
| WINDOW SIZE (MM) | 18 |
LEAPERS® LIFETIME WARRANTY
Leapers, Inc. warrants that all products conform to published specifications and are free from defects in material and workmanship. Leapers, Inc. will repair or replace, at our discretion, a defective product for the duration of the product’s lifespan. In the event of a product being discontinued, credit for the product’s MSRP may be offered.
