UTG RECON 360 TL BIPOD, 8"-12" CENTER HEIGHT, PICATINNY, TL-BP03-B
$84.97
(No reviews yet)
Write a Review
UTG RECON 360 TL BIPOD, 8"-12" CENTER HEIGHT, PICATINNY, TL-BP03-B
UTG RECON 360 TL Bipod, 8"-12" Center Height, Picatinny
UTG® RECON® 360 TL As the name implies, the Recon 360 TL series of bipods feature a smooth 360°-degree panning capability with the addition of 15° forward, rearward, left, and right tilt. Panning and tilting tension is adjustable by the end-user to fine-tune the desired amount of resistance and feedback required to pan and tilt the bipod. Tension adjustment is made quick and easy with a centrally located throw lever at the base of the bipod’s mount. The throw lever is not only user friendly, but user serviceable and can be readjusted over time as the bipod wears in.
Suitable for different long gun applications, Recon 360 TL bipods are available in three different lockable and adjustable center-heights and are available in both M-LOK® and MIL-STD-1913 Picatinny mount configurations. Additionally, MIL-STD-1913 Picatinny mount models come included with a swivel stud mount adaptor, further increasing its compatible versatility right out-of-the-box.
- 3 Position Folding Legs and Lockable Leg Extensions Equipped with Nonslip Rubberized Foot Pads
- Center Height Adjustable from 8.1"-11.9"
- Low Profile Offset Picatinny Mount with Knurled Thumb Nut and Reinforced Steel Cross Bolt
- Tunable Tension Adjustment Applies the Desired Amount of Tension to the Bipod’s 360° Panning & 15° Left, Right, Forward, and Rearward Tilt
- Readjustable Tension Adjustment Lever is User Serviceable and Optimizes the Applied Tension with the Lever’s Throw Distance and Positioning
- Durable Aircraft Aluminum Construction Finished in a Matte Black Anodization
- US PAT. D758521, US PAT. D758522
FINE-TUNE ADJUSTMENT
Tension Adjustment Throw Lever is User Friendly and Serviceable being re-adjustable over time.
- While holding the lever in place, use a T15 Torx wrench to remove the screw and lever cap.
- Pull the lever out and rotate the exposed hex nut clockwise to increase and counterclockwise to decrease the amount of tension applied by the lever.
Reinstall lever to test lever tension. We recommend adjusting until max tension is achieved when the lever points straight down. - With max tension achieved, reinstall the lever with it pointing straight down.
Using the T15 Torx wrench, reinstall the lever cap and screw. Recommended torque value is 15in-lbs.
VERSATILE PANNING & TILTING
Smooth 360° planning with additional 15° forward, rearward, left, and right tilt.
0°, 45°, AND 90° FOLDABLE POSITIONS WITH POSI-LOCK
Tension Adjustment Throw Lever is User Friendly and Serviceable being re-adjustable over time.
- Press down and hold the Posi-lock release.
- Turn the bipod leg to the desired position, releasing the Posi-lock once done to lock the bipod leg into place.
- To position the legs to face rearward and away from the muzzle rotate the base along its panning axis 180 degrees.
LOCKABLE AND ADJUSTABLE CENTER HEIGHT
Tension Adjustment Throw Lever is User Friendly and Serviceable being re-adjustable over time.
- Make sure the Locking Thumb Wheel is fully released by turning it counter-clockwise.
- Extend the bipod leg by pulling it out of the leg housing. Set it at any of the pre-cut extension notches. Tighten the Locking Thumb Wheel by turning it clockwise to lock the leg.
- To retract the bipod leg, loosen the Locking Thumb Wheel first. Press down the Leg Retraction Clamp before you push the extended leg upward into the housing.
ACCESSORIES INCLUDED
- Swivel Stud Adaptor
- User Manual

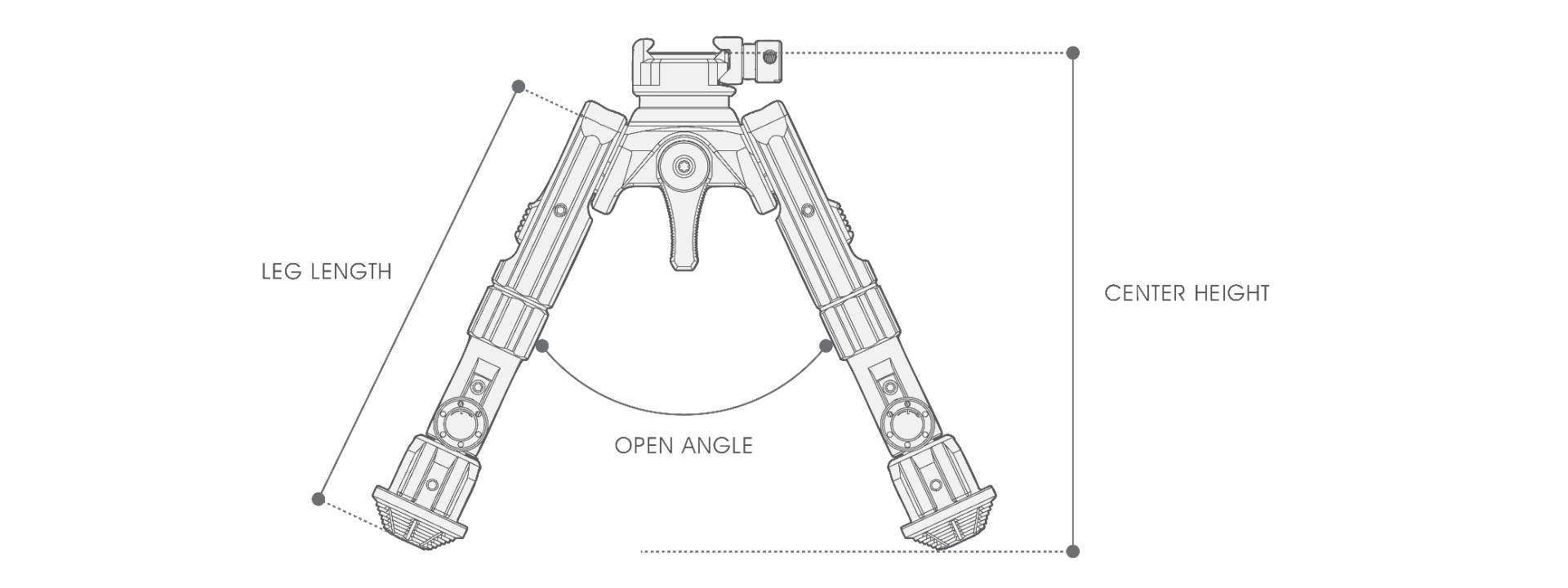

| LEG LENGTH MAX (IN) | 12.5 |
|---|---|
| LEG LENGTH MIN (IN) | 8.21 |
| WARRANTY | Lifetime |
| MATERIALS | 6061-T6 Aluminum |
| COLOR(S) | Black |
| SURFACE FINISH | Anodized |
| MOUNT TYPE | Picatinny/Swivel Stud |
| FOLDABLE POSITIONS | 3 |
| FOOTPAD TYPE | Rubberized |
| PANNING (DEGREES) | 360 |
| TILTING (DEGREES) | 15 |
| EXTENDABLE POSITIONS | 7 |
| SWIVEL STUD TO PICATINNY ADAPTOR | Yes |
| WEIGHT (OZ) | 14.5 |
| CENTER HEIGHT MAX. AT 90°(IN) | 11.9 |
|---|---|
| CENTER HEIGHT MIN. AT 90°(IN) | 8.1 |
| LEG LENGTH MAX (IN) | 12.5 |
| LEG LENGTH MIN (IN) | 8.21 |
| OPEN ANGLE (DEGREES) | 50 |
LEAPERS LIFETIME WARRANTY
Leapers, Inc. warrants that all products conform to published specifications and are free from defects in material and workmanship. Leapers, Inc. will repair or replace, at our discretion, a defective product for the duration of the product’s lifespan. Verification through an RA number is required. In the event of a product being discontinued, credit in the amount of the product’s MSRP may be offered.
